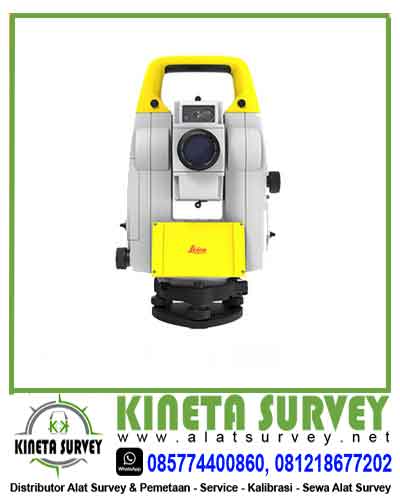

Jual Total Station Leica ICON-ICT30

KINETA SURVEY, HP/WA: 085774400860, 081218677202, Distributor Pusat Jual berbagai macam Alat Survey, Drone & Pemetaan Seperti Total Station, Digital Theodolite, Automatic Level Waterpass, GPS Geodetic, Accessories, Service Kalibrasi, Sewa & Jasa Pengukuran Topografi TERMURAH di Jakarta dan Seluruh Wilayah Indonesia.

KINETA SURVEY menyediakan produk alat survey yang berkualitas, asli, serta bergaransi yang resmi. Kami juga memiliki banyak klien dari berbagai macam daerah yang sudah bermitra dengan KAMI karena harga yang kami tawarkan merupakan harga terbaik yang ada di pasaran seluruh Indonesia. Percayakan kebutuhan alat survey dan pemetaan Anda hanya di KINETA SURVEY

Spesifikasi Total Station Leica ICON-ICT30

High-performance construction layout tool for building construction layout applications

Increased complexity in construction projects and the strong trend towards digitalisation and Building Information Modelling (BIM) in the Building Construction industry make digital layout methods and processes crucial. Facilitating the move from conventional analogue measurement methods to modern digital layout techniques, Leica Geosystems developed the easy-to-use construction layout tool Leica iCON iCT30 to bring digital and automated layout technology to any construction site.

The iCON iCT30 construction layout tool combined with the construction-tailored Leica iCON build field software is an easy-to-use and affordable solution to increase productivity by minimizing labour time and mistakes, and on the other hand, increasing accuracy and speed.

Total Station Leica ICON-ICT30 allows users to:

Move away from conventional analogue layout methods and easily adopt modern digital layout
Increase productivity due to one-person operation of the iCON iCT30
Layout lines for various foundation, structure and building exterior applications
Layout interior drywall and insulation installations
MEP layout of hanger locations for HVAC and duct work, inserts and slits for sheet metal work
Fully automatic layout routines of points on floor or ceiling and lines for pipe wall penetrations
Effectively do as-built checks and control measurements in vertical construction

With a measurement range of up to 80 m and an angular accuracy of 9”, the iCT30 meets most requirements for layout applications. Forget about disturbances such as reflections, interruptions of line of sight or congestions that slow down the layout process. The iCT30 is specifically developed to robustly deal with difficult site conditions.

The iCON iCT30 features:

4 buttons keyboard for simple operation
Prism search by AutoSearch
Most stable lock on prism for construction layout tools
Tailored iCON build software with streamlined use of fully rendered models in IFC format
Telescope for simpler aiming

Go digital
Swap the conventional measuring methods for new modern technology that is easy to use. The iCT30 allows you to move from conventional analogue layout methods, such as tapes, plumb bobs and strings to modern digital layout methods. Turn complex designs easily into reality with the Leica iCON iCT30 construction layout tool.

Maximum up-time
Layout and measure more points per day. The iCT30 features the best prism lock for construction layout tools to protect against interferences from foreign reflections.

Construction-tailored
Leica iCON build field software has been designed specifically for use in the building construction industry. The software offers a streamlined use of fully rendered models in IFC format, allowing the operator to work with the model directly and easily in the field.

Simpler aiming
The integrated telescope simplifies and thus speeds up reflectorless layout tasks and the aiming to certain spots.

Spesifikasi Total Station Leica ICON-ICT30

Total Station Leica ICON-ICT30 Construction Layout Tool
ANGULAR MEASUREMENT
Accuracy 1 Hz and V	Absolute, continuous, diametrical	9“ (2.7 mgon)
DISTANCE MEASUREMENT
Range 2	Prism Non-Prism / Any surface 3	1.5 m to 80 m 1.5 m to 80 m
Accuracy / Measurement time	Single (prism) 2,4 Single (any surface) 3,4	1mm / typically 2.4 s 2mm / typically 3 s
Laser dot size	At 50 m	8 mm x 20 mm Coaxial, visible red laser
AUTOMATIC AIMING
Target aiming type		ATR
Target aiming & Target locking range2	Prism	80 m / 80 m
Accuracy 1,2 / Measurement time	ATR angle accuracy Hz, V	9“ (2.7 mgon) typically 3-4 s
PRISM SEARCH
Prism search type		AutoSearch
Range / Search time	Prism	80 m / typically 15 s
GUIDE LIGHT (EGL)
Working range / Accuracy		5–80 m / typically 2 cm @ 40 m
GENERAL
Field software	Leica iCON field software	iCON build software running on field tablet connected via BT or LR-BT (optional)
Display & keyboard		4 button keyboard with status LEDs
Laser Plummet		Yes
Power management	Exchangeable Lithium-Ion battery	Operating time 8–10 h
Interfaces	RS232, USB, Bluetooth®
Weight	Layout tool including battery	5.0 kg
Environmental specifications	Working temperature range Dust / Water (IEC 60529) / Humidity	–20 °C to +50 °C IP55 / 95 %, non-condensing

Kami menyediakan produk yang lengkap seperti, Total Station, Theodolite Digital, GPS Geodetic, Kompas, Automatic Level Waterpass dengan merk seperti Sokkia, Topcon, Nikon, Leica, Ruide, Mato, GeoMato, Mato, Minds, Gowin, Horizon, Spectra, South, Titan, Geomax, Geo Fennel, Minds, CHC, Trimble, Hi-Target, Horizon dan merk terkenal lainnya.

Siap Kirim Alat Survey /Alat Ukur Ke seluruh Kota Indonesia:

Jakarta, Tangerang, Bekasi, Cirebon, Bandung, Semarang, Jogja, Surabaya, Malang, Denpasar, Bali, Kupang, NTT, Mataram, NTB, Lampung, Palembang, Bengkulu, Jambi, Pekanbaru, Medan, Aceh, Sumatera, Riau, Batam, Pontianak, Palangkaraya, Banjarmasin, Samarinda, Balikpapan, Kalimantan, Makassar, Mamuju, Poso, Palu, Kendari, Donggala, Gorontalo, Manado, Sulawesi, Irian jaya, Papua, Sorong, Manokwari, Fak fak, Jayapura, Merauke, Nabire, Papua Barat & Seluruh Indonesia

KATEGORI PRODUK:

Layanan Jasa Kami Lainnya:

Jasa Pengukuran Topografi
Jasa Service Alat Survey
Jasa Kalibrasi Alat Survey
Sewa Alat Survey Total Station, Theodolite, dan Automatic Level Waterpass

Kami Menerima Jasa Pengukuran & Pemetaan, Survey Topografi Jakarta & Seluruh Indonesia :

Perencanaan Jalan,
Saluran Irigasi
Konstruksi Bangunan
Proyek Perumahan
Dan lain sebagainya.

Untuk informasi produk, harga dan penawaran bisa langsung menghubungi kami dibawah ini.

Kontak Kami:

HP/WA: 085774400860, 081218677202
Email: abdul.kineta@gmail.com , jamaludin.muchlis81@gmail.com
