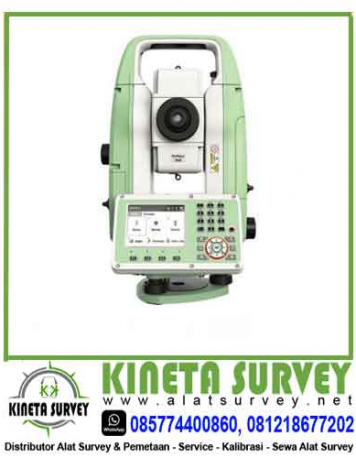

Jual Total Station Leica FlexLine-TS03
| Stok | Tersedia |
| Kategori | Total Station |
Jual Total Station Leica FlexLine-TS03
Jual Total Station Leica FlexLine-TS03
KINETA SURVEY, HP/WA: 085774400860, 081218677202, Distributor Pusat Jual berbagai macam Alat Survey, Drone & Pemetaan Seperti Total Station, Digital Theodolite, Automatic Level Waterpass, GPS Geodetic, Accessories, Service Kalibrasi, Sewa & Jasa Pengukuran Topografi TERMURAH di Jakarta dan Seluruh Wilayah Indonesia.
KINETA SURVEY menyediakan produk alat survey yang berkualitas, asli, serta bergaransi yang resmi. Kami juga memiliki banyak klien dari berbagai macam daerah yang sudah bermitra dengan KAMI karena harga yang kami tawarkan merupakan harga terbaik yang ada di pasaran seluruh Indonesia. Percayakan kebutuhan alat survey dan pemetaan Anda hanya di KINETA SURVEY
Spesifikasi Total Station Leica FlexLine-TS03
Total Station Leica FlexLine-TS03
• 5″ Angle Measurement Accuracy
• 3500m Single Prism Range
• R500 EDM – 500m Reflectorless Range
• Accuracy – The most precise in its class (1 mm + 1.5 ppm)
• Quadruple axis compensation
• Display resolution: 0.1’’
• 2GB Internal Memory, Memory card: SD card 1 GB or 8 GB, USB memory stick: 1 GB
• TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™ with Windows EC7 Operating system
• 3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys
• IP66 Protection
• Laser Plummet for Centering
Total Station Leica FlexLine-TS03
The instruments are equipped with a comprehensive application-based software package – Leica FlexField software – that enables most survey and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments.
Work faster
Measure more points per day due to faster measurement and
stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our comprehensive and user-friendly Leica FlexField software.
Use it trouble-free
Increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and
support network.
Choose products that are built to last
FlexLine operates with the same high level of quality even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold).
Control your investment
Reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.
Specifications Total Station Leica FlexLine-TS03
| ANGULAR MEASUREMENT | Total Station Leica FlexLine-TS03 | |
| Accuracy Hz and V | Absolute, continuous, diametrical1 | 2’’ / 3’’ / 5’’ |
| Display resolution: 0.1’’ (0.1 mgon)
Quadruple axis compensation Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’ Compensator range: +/- 3.78’ (+/- 0.07 gon) Electronic level resolution: 2“ Circular level sensitivity: 6` / 2 mm |
||
| DISTANCE MEASUREMENT | ||
| Range | Prism (GPR1, GPH1P): 1.5 m to 3.500 m
Prism GPR1 (Long Range mode) > 10,000 m ✔ ✔ ✔ Non-Prism / Any surface R500 |
|
| Accuracy /
Measurement time |
Single prism
Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s) Precise&Fast / Once&Fast: 2 mm + 1.5 ppm (typical 2 s) Tracking / Continously: 3 mm + 1.5 ppm (typical < 0.15 s) Averaging: 1 mm + 1.5 ppm Long Range mode / > 4 km: 5 mm + 2 ppm (typical 2.5 s) Non-Prism / Any surface 0 m – 500 m: 2 mm + 2 ppm (typical 3 – 6 s) > 500 m: 4 mm + 2 ppm (typical 3 – 6 s) |
|
| Laser dot size | At 30 m: 7 mm x 10 mm
At 50 m: 8 mm x 20 mm At 100 m: 16 mm x 25 mm |
|
| Telescope | Magnification: 30x
Resolving power: 3” Focusing range: 1.55 m / 5.08 ft to infinity Field of view: 1°30’ / 1.66 gon / 2.7 m at 100 m |
|
| GENERAL | ||
| Display and keyboard | 3.5“ (inch), 320 x 240
px QVGA, grayscale, 28 keys |
|
| Operation | Endless drives for HZ & V
Trigger-Key: user definable with 2 functions |
|
| Power management | Exchangeable Lithium-Ion battery6
Operating time with GEB361 Operating time with GEB331 |
up to 30 h up to 15 h |
| Battery charging time with
GKL341 charger for GEB361 / GEB331 GKL311 charger for GEB361 / GEB331 |
3 h 30 min / 3 h 6 h 30 min / 3 h 30 min |
|
| External supply voltage
Nominal voltage 13.0 V DC & 16 W max |
||
| Data storage | Internal memory: 2 GB Flash
Memory card: SD card 1 GB or 8 GB USB memory stick: 1 GB |
|
| Processor | TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
Operating system – Windows EC7 |
|
| Interfaces | RS2327, USB device | |
| Laser plummet
(Laserclass 2) |
Accuracy
Plumb line deviation: 1.5 mm at 1.5 m instrument height Diameter of laser point: 2.5 mm at 1.5 m instrument height |
|
| Weight | 4.3 kg | |
| Environmental
specifications |
Working temperature range: –20°C to +50°C
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing Military Standard 810G, Method 506.5 |
|
