Beranda » Automatic Level Waterpass » Jual Digital Level Trimble DiNi
click image to preview activate zoom

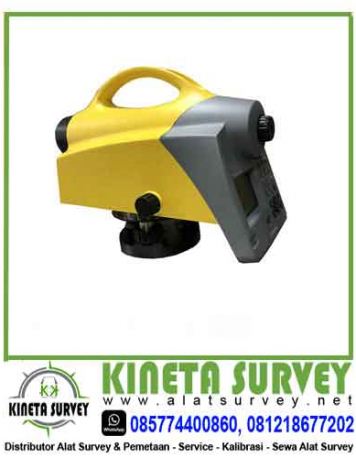

Jual Digital Level Trimble DiNi
Stok Tersedia
Kategori Automatic Level Waterpass, Laser Level Waterpass, Surveying Instrument
Tentukan pilihan yang tersedia!
INFO HARGA
Silahkan menghubungi kontak kami untuk mendapatkan informasi harga produk ini.
Pemesanan lebih cepat! Klik Order
Bagikan ke

Jual Digital Level Trimble DiNi

Jual Digital Level Trimble DiNi

KINETA SURVEY, HP/WA: 085774400860, 081218677202, Distributor Pusat Jual berbagai macam Alat Survey, Drone & Pemetaan Seperti Total Station, Digital Theodolite, Automatic Level Waterpass, GPS Geodetic, Accessories, Service Kalibrasi, Sewa & Jasa Pengukuran Topografi TERMURAH di Jakarta dan Seluruh Wilayah Indonesia.

KINETA SURVEY menyediakan produk alat survey yang berkualitas, asli, serta bergaransi yang resmi. Kami juga memiliki banyak klien dari berbagai macam daerah yang sudah bermitra dengan KAMI karena harga yang kami tawarkan merupakan harga terbaik yang ada di pasaran seluruh Indonesia. Percayakan kebutuhan alat survey dan pemetaan Anda hanya di KINETA SURVEY

Spesifikasi Digital Level Trimble DiNi

The Trimble® DiNi® Digital Level is a digital height measurement sensor designed for any job site where fast and accurate height determination is required. Use the Trimble DiNi for applications such as precise leveling of flat and sloping surfaces, establishing the vertical component of grade and ground profiles, subsidence monitoring, and establishing the vertical component of control networks.
The Trimble DiNi Digital Level lets you:
Ë Determine accurate height information 60% faster than with automatic leveling
Ë Eliminate errors and reduce rework with digital readings
Ë Transfer data to the office easily
Ë Measure to a field of just 30 cm
The easy-to-use and accurate Trimble DiNi offers numerous features to maximize your productivity in the field. To learn more, download the Trimble DiNi Datasheet.
Digital Level Trimble DiNi
Sepesifikasi Digital Level Trimble DiNi
TRIMBLE DINI03 DIGITAL AUTO LEVEL
PERFORMANCE
Accuracy DIN 18723, standard deviation height measuring per 1 km (3280.84 ft) of double leveling
Trimble DiNi 0.3 mm per km
Electronic measurement Invar precision bar code staff 0.3 mm (0.001 ft)
Standard bar code staff 1.0 mm (0.004 ft)
Visual measurement 1.5 mm (0.005 ft)
Distance measurement with a 20 m (65.62 ft) sighting distance Invar precision bar code staff 20 mm (0.066 ft)
Standard bar code staff 25 mm (0.082 ft)
Visual measurements 0.2 m (0.656 ft)
Trimble DiNi 0.7 mm per km
Electronic measurement Invar precision bar code staff 0.7 mm (0.066 ft)
Standard bar code staff 1.3 mm (0.082 ft)
Visual measurements 2.0 m (0.656 ft)
Distance measurement with a 20 m (65.62 ft) sighting distance Invar precision bar code staff 25 mm (0.066 ft)
Standard bar code staff 30 mm (0.082 ft)
Visual measurements 0.3 m (0.656 ft)
Range
Electronic measurement 1.5 m–100 m (4.92 ft–328.08 ft)
Visual measurement from 1.3 m (4.265 ft)
Electronic Measurement
Trimble DiNi 0.3 mm per km
Electronic measurement Resolution height measurement 0.01 mm / 0.0001 ft / 0.0001 in
Resolution distance measurement 1 mm (0.003 ft)
Measurement time. 3 s
Trimble DiNi 0.7 mm per km
Electronic measurement Resolution height measurement 0.1 mm / 0.001 ft / 0.001 in
Resolution distance measurement 10 mm (0.033 ft)
Measurement time. 2 s
Horizontal Circle
Type of graduation 400 grads and 360 deg
Graduation interval 1 grad and 1deg
Estimation to 0.1 grad and 0.1 deg
Measurement Programs: Trimble DiNi 0.3 mm per km
Standard programs Single measurement with and without stationing, stakeout, line leveling with intermediate sight and stakeout, line adjustment
Leveling methods¹ BF,BFFB, BFBF, BBFF, FBBF aBF, aBFFB, aBFBF, aBBFF, aFBBF
GENERAL SPECIFICATION
TELESCOPE Aperture 40 mm (0.131 ft)
Field of view at 100 m. 2.2 m (7.217 ft)
Electronic measurement field 0.3 m (0.984 ft)
Magnification Trimble DiNi 0.3 mm per km 32 x
Trimble DiNi 0.7 mm per km 26 x
Compensator
Inclination range
Setting accuracy Trimble DiNi 0.3 mm per km ±0.2″
Trimble DiNi 0.7 mm per km ±0.5″
Circular level 8’/2 mm with Illumination
Display Graphical, 240 x 160 pixels, monochrome with illumination
Keyboard 19-key alpha-numeric and 4-way arrow key for navigation
Recording Internal memory up to 30 000 data lines
External memory USB Flash Drive support
Data transfer USB Interface for data transfer between DiNi and PC (means two way communication)
Real-time clock and temperature sensor Trimble DiNi 0.3 mm per km Recording of time or temperature
Trimble DiNi 0.7 mm per km N.A.
Power supply Internal battery Li-Ion, 7.4 V / 2.4 Ah
Operating time 3 days working time without illumination
Weight (including battery) 3.5 kg (7.72 lb)

Unequalled for Performance in the Field

The Trimble DiNi is designed to perform optimally every day, whatever your surveying job. It is built rugged—with a dust- and waterproof rating of IP55—to take the tough conditions of the job site in its stride.
A backlight in the screen and a light in the circular bubble keep you productive even when daylight gets low.

The DiNi will operate for three days without requiring a battery change, then when it does just recharge it as you would your Trimble GPS system battery…the batteries are the same to ensure convenience and productivity.
When a job is complete, easily transfer data from the instrument to a computer by using a USB storage device; You don’t have to carry your instrument in to the office.

Easy to Learn, Easy to Use
The Trimble DiNi Digital Level demands the industry’s smallest measurement field—just 30 cm of code rod. So you can measure greater change in height between the level and the rod in one setup, and save time.

Additionally, the small measurement area:
• reduces the number of stations needed by up to 20% because the Trimble DiNi is less impacted by a rod hidden by vegetation or hilly terrain.
• makes leveling in low light conditions, for example, in tunnels, easier because only a very small part of the staff needs to be illuminated.
• ensures greater accuracy through less influence of refraction near the ground. The large graphical display of the Trimble DiNi is also unique, and is complemented by the latest Trimble keyboard for easy
operation. Crew members used to operating other Trimble systems will easily adapt to the Trimble DiNi.

Trimble Quality and Accuracy for Measuring with Confidence
The Trimble DiNi Digital Level is designed to support the rest of Trimble’s Integrated
Surveying portfolio. The Trimble DiNi interface is based on Trimble’s other advanced and field-proven controllers for easy adoption of the instrument by your crews. Proven
Optics by Carl Zeiss ensure the Trimble
DiNi offers the highest precision and best resolution.

Measure with confidence, knowing that with  the Trimble DiNi Digital Level, your crew will obtain the best quality results with the highest level of productivity.

Kami menyediakan produk yang lengkap seperti, Total Station, Theodolite Digital, GPS Geodetic, Kompas, Automatic Level Waterpass dengan merk seperti Sokkia, Topcon, Nikon, Leica, Ruide, Mato, GeoMato, Mato, Minds, Gowin, Horizon, Spectra, South, Titan, Geomax, Geo Fennel, Minds, CHC, Trimble, Hi-Target, Horizon dan merk terkenal lainnya.

Siap Kirim Alat Survey /Alat Ukur Ke seluruh Kota Indonesia:

Jakarta, Tangerang, Bekasi, Cirebon, Bandung, Semarang, Jogja, Surabaya, Malang, Denpasar, Bali, Kupang, NTT, Mataram, NTB, Lampung, Palembang, Bengkulu, Jambi, Pekanbaru, Medan, Aceh, Sumatera, Riau, Batam, Pontianak, Palangkaraya, Banjarmasin, Samarinda, Balikpapan, Kalimantan, Makassar, Mamuju, Poso, Palu, Kendari, Donggala, Gorontalo, Manado, Sulawesi, Irian jaya, Papua, Sorong, Manokwari, Fak fak, Jayapura, Merauke, Nabire, Papua Barat & Seluruh Indonesia

KATEGORI PRODUK:

Layanan Jasa Kami Lainnya:

  • Jasa Pengukuran Topografi
  • Jasa Service Alat Survey
  • Jasa Kalibrasi Alat Survey
  • Sewa Alat Survey Total Station, Theodolite, dan Automatic Level Waterpass

Kami Menerima Jasa Pengukuran & Pemetaan, Survey Topografi Jakarta & Seluruh Indonesia :

  • Perencanaan Jalan,
  • Saluran Irigasi
  • Konstruksi Bangunan
  • Proyek Perumahan
  • Dan lain sebagainya.

Untuk informasi produk, harga dan penawaran bisa langsung menghubungi kami dibawah ini.

Kontak Kami:

HP/WA: 085774400860, 081218677202
Email: abdul.kineta@gmail.com , jamaludin.muchlis81@gmail.com
