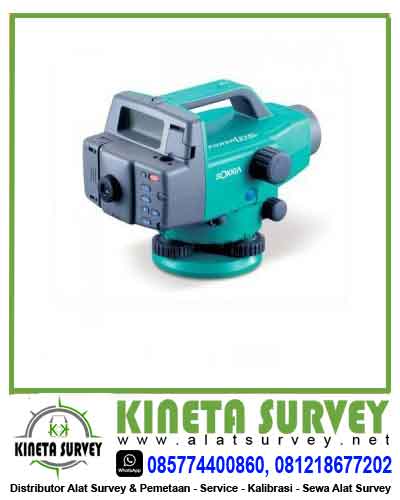

Jual Digital Level Sokkia SDL50
| Stok | Tersedia |
| Kategori | Automatic Level Waterpass, Laser Level Waterpass, Surveying Instrument |
Jual Digital Level Sokkia SDL50
Jual Digital Level Sokkia SDL50
KINETA SURVEY, HP/WA: 085774400860, 081218677202,, Distributor Pusat Jual berbagai macam Alat Survey, Drone & Pemetaan Seperti Total Station, Digital Theodolite, Automatic Level Waterpass, GPS Geodetic, Accessories, Service Kalibrasi, Sewa & Jasa Pengukuran Topografi TERMURAH di Jakarta dan Seluruh Wilayah Indonesia.
KINETA SURVEY menyediakan produk alat survey yang berkualitas, asli, serta bergaransi yang resmi. Kami juga memiliki banyak klien dari berbagai macam daerah yang sudah bermitra dengan KAMI karena harga yang kami tawarkan merupakan harga terbaik yang ada di pasaran seluruh Indonesia. Percayakan kebutuhan alat survey dan pemetaan Anda hanya di KINETA SURVEY.
Spesifikasi Digital Level Sokkia SDL50
Features:
1. 2.5 seconds — High-speed Measurement
Aim, focus, and press a key. Height and distance are simultaneously measured in 2.5 seconds, 20 percent faster than ordinary digital levels.
2. Consistent Performance in Diverse Environments
The SDL50 provides the superior measurement capability under a variety of environmental conditions. Even when the staff surface is partially shaded, or in dim lighting conditions where the brightness at staff surface is as low as 20 lux, the SDL50 consistently provides reliable measurement results without downtime. A small flashlight is enough to illuminate the staff in the dark.
3. Automatic Recognition of Inverted Staff
The SDL50 automatically recognizes directions of RAB-Code staffs and displays the results with a minus sign (-) when the staff is inverted. Height of ceiling, overpass, bridge, road sign, tree branch, tunnel crown, and other objects can be easily measured without a calculator.
4. Wave-and-Read Technology
The innovative “Wave-and-Read” technology provides an additional survey style option. The SDL50 tracks the RAB-Code staff waved back and forth to read the correct height. The staff reading becomes the minimum when it is in vertical position. The SDL50 automatically detects the least value of staff readings.
5. Choice of Accuracy
SDL50: 0.6mm (New Super-Invar Staff) / 0.8mm (Invar) / 1.5mm (Fiberglass)
Choose the digital level and staffs according to the accuracy you need.
Sokkia offers the top-of-the-line SDL1X model for higher accuracy of up to 0.2mm.
6. Internal Memory
Up to 2,000 measurement data of elevation or height difference can be recorded in the internal memory. Auto mode records data as soon as the measurement is taken, while manual mode allows you to check the measurement results before recording. Stored data can be exported using the “Spectrum Link” software.
7. Convenient Onboard Programs
The onboard measurement programs of SDL50 facilitate leveling and setting-out tasks. Programs include: Elevation, Height Difference, Cut and Fill Setting-out, Setting-out in Distance.
a. Elevation / Height Difference
-The SDL50 calculates height difference between backsight (BS) and foresight (FS).
– Elevation of foresight can be calculated by inputting BS elevation.
b. Cut and Fill Setting-out
-Slope can be set using Cut and Fill Setting-out program.
-Leveling is possible by inputting the height difference zero (0).
c. Height Measurement
-Two measurements provide the height of point B.
-Elevation can be calculated by inputting BS elevation.
Specifications:
| Model | Sokkia SDL50 | |
| Height accuracy (ISO 17123-2) | ||
| Electronic | BIS30A staff | 0.6mm (0.024in.) |
| BIS20/30 staffs | 0.8mm (0.03in.) | |
| BGS staffs | 1.5mm (0.06in.) | |
| Visual | BGS staffs | 2.0mm (0.08in.) |
| Distance accuravy (D: measuring distance) | ||
| Electronic | <±10mm (±0.4in.) [D≤10m (D≤33ft.)] | |
| <±0.1% × D [10<D≤50m (33<D≤164ft.)] | ||
| <±0.2% × D [50<D≤100m (164<D≤328ft.)] | ||
| Measuring range | ||
| Electronic | 1.6 to 100m (5.3 to 328ft.) | |
| Visual | from 1.5m (5.0ft.) | |
| Measuring mode | Single/Repeat/Average/Tracking/Wave-and-Read | |
| Display resolution | ||
| Height | 0.0001/0.001/0.01m (0.001/0.01/1ft.,1/8in.) | |
| Distance | 0.01/0.1m (0.1/1ft.,1in.) | |
| Measuring time | ||
| Single / Repeat | <2.5s | |
| Average | <2.5s × [number of measurements] | |
| Tracking | <1s | |
| Minimum brightness condition | 20 lux at the surface of staff (with natural light) | |
| Telescope | ||
| Objective aperture | 36mm (1.4in.) | |
| Magnification / Resolving power | 28x / 3.5″ | |
| Minimum focus / Field of view | 1.5m (5ft.) / 1º20′ | |
| Compensator | ||
| Type | Pendulum compensator with magnetic damping system | |
| Working range | ±15′ | |
| Sensitivity of circular level | 10′ / 2mm | |
| Horizontal circle | Diameter: 103mm (4in.), Graduation: 1º(1gon) | |
| Display | Dot matrix LCD (128 × 32 dot) with illuminator | |
| Keyboard | 8 keys (7 keys on front panel, 1 key on side panel) | |
| Data storage | 2,000 points internal memory | |
| Interface | RS-232C, baud rate 1,200 to 38,400 bps | |
| Onboard programs | Elevation/Height difference/Cut & Fill setting-out/ Setting-out distance/Height measurement |
|
| Water resistance | IPX4 (IEC60529:2001) | |
| Operating temperature | -20 to +50℃ (-4 to 122ºF) | |
| Size | W158 × D257 × H182mm (W6.2 × D10.1 × H7.2in.) | |
| Weight with battery | 2.4kg (5.3 lb.) | |
| Standard battery | BDC46B (Rechargeable Li-ion, 7.2V, 2.45Ah) | |
| Operating time | Approx. 16 hours at 25℃ (77ºF) | |
